OWP-BL1500 Series Single Stage Centrifugal Pump 400V-800VDC 1500W For Liquid Cooling Energy Storage Thermal Management System

OWP-BL1500 Series Single Stage Centrifugal Pump 400V-800VDC 1500W for Liquid Cooling Energy Storage Thermal Management System

Model No.: OWP-BL500H-D5-1

Power Input:400-800VDC

Rated power:1500W

Rated Flow rate :250L/min @ H≥20M

Max Flow:300L/min

Max Lift Head:27M

---------------------------------------------------------------------------

Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution

Medium temperature:

Working long hours guaranteed

-40℃ to +85℃ (-40°F to + 185°F)

Nozzle: 46mm

Speed Control:Yes

Fault Feedback signal:Yes

IP Grade:IP67

Noise:≤65dB

Service life:＞20000hours

Weight: 5.5kg

Features

◆Single-stage Centrifugal pump

◆Magnetic force transmission (shield pump structure)

◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.

◆With wide range operating temperature

◆PWM signal speed controlling

◆With constant flow controlling

◆Reverse polarity protection

◆Dry running protection

◆Over Voltage, over current protection

◆Overload, over temperature protection

Driving device (Including motor)

◆Driving electromagnet: nylon plastic capsulated magnet

◆Screws and nuts: SUS 304 stainless steel

Driving Motor : brushless motor

◆Motor winding frame :PPA GF

◆Pump housing: Die-casting aluminum case with sandblasting and impregnation treatment

◆Waterproof based on IP67 rating (en60529)

◆Connector model: ATHP062S25NL-S2/RTS6BS10N6SHEC03

◆Nozzle:46mm

Pump Applications

EV motor cooling

EV motor controller cooling

Turbocharger intercooler pump

EV battery thermal management

EV Liquid-cooled charging cabinet

Battery energy storage cooling pump

Fuel cell cooling pump

water pump large-scale GPU cooling

Industrial cooling system

Immersion cooling

Communication base station cooling

Electric coolant pumps For Energy Storage
BLDC water pumps For Industrail cooling
BLDC pumps for Engergy storage & data center Cooling solutions
Coolant pump for EV charging cooling
EWP For Liquid-cooled supercharger
Glycol circulation booster
Fluorinated liquid pump
Electric pump for boosting electric insulating oil
Electric coolant pump for immersion-cooled servers

Our clients come from 36 countires with high reputation in their fields.

Pump Advantages

Professional electromagnetic theory design verification ,makes our pump motor 3-5% higher efficiency than other competitors.

Simulation calculation of hydraulic design by professional software makes our impeller and volute reach to the best match for higher hydraulic efficiency than others

Automotive grade electronic components makes our pump withstand extreme harsh operating environment

Software&Tools applied:

CFturbo/ANSYS FLUENT/Compile/Link/Debug/Simulate/Emulate/Program /SlikEdit, TestLink

Software guidelines:Code Check；SVN:SW version control system (PVCS)；Test plan/tests (white box, black box)；Internal audit & release

Pump's Appearance

Performance

■Temperature parameter

Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)

Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%

Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the

service life)

■ System pressure

-99-350Kpa ( 100℃ (212°F).

The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.

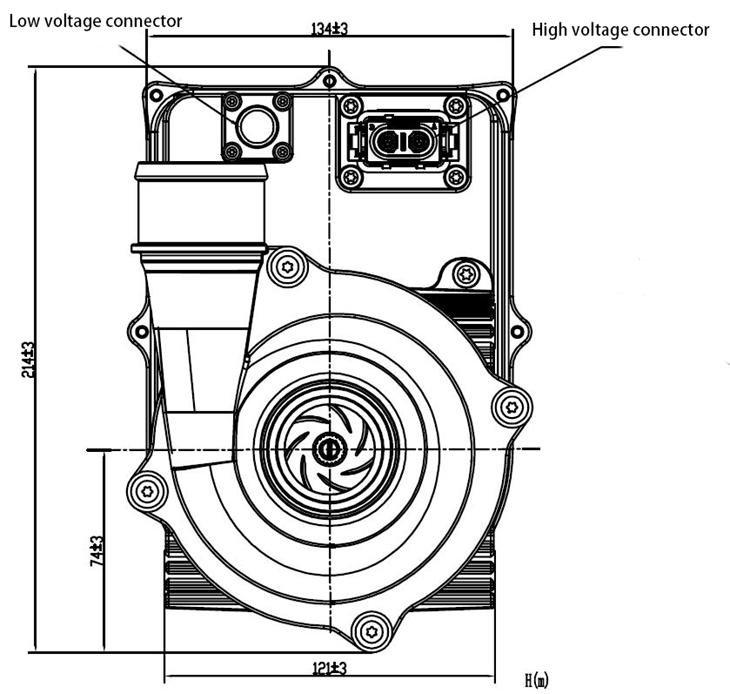

Pump overall size

1500W electric coolant pump

Centrifugal electric coolant pump

1500W coolant pump electric
